Product Details
Place of Origin: Zhejiang, China
Brand Name: Longer
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $3,000.00 - $8,000.00/sets
Plastic Processed: |
PET |
Condition: |
New |
Application: |
Bottle |
Voltage: |
380V/50HZ |
Dimension(L*W*H): |
1730*800*1850 |
Weight (KG): |
Custom KG |
Automation: |
Other |
Warranty: |
One Year |
Key Selling Points: |
Other |
Applicable Industries: |
Other |
Machinery Test Report: |
Other |
Video Outgoing-inspection: |
Other |
Warranty Of Core Components: |
Other |
Core Components: |
Other |
Semi- Automatic: |
4-cavity |
High-speed: |
Blue |
Plastic Processed: |
PET |
Condition: |
New |
Application: |
Bottle |
Voltage: |
380V/50HZ |
Dimension(L*W*H): |
1730*800*1850 |
Weight (KG): |
Custom KG |
Automation: |
Other |
Warranty: |
One Year |
Key Selling Points: |
Other |
Applicable Industries: |
Other |
Machinery Test Report: |
Other |
Video Outgoing-inspection: |
Other |
Warranty Of Core Components: |
Other |
Core Components: |
Other |
Semi- Automatic: |
4-cavity |
High-speed: |
Blue |
| ITEM | UNIT | LGB-4-700 |
| Number of cavity | cavity | 4 |
| Theoretical Output | pcs/hr | 2500 |
| Max.container volume | L | 0.7 |
| Max.neck diameter | mm | 45 |
| Max.container diameter | mm | 80 |
| Max.container height | mm | 370 |
| Mould Thickness | mm | 180 |
| Mould Stroke | mm | 170 |
| Heat Lamp Amount | pcs | 28 |
| Max.heating power | kw | 5 |
| Power of Main Blower | kw | 5.5 |
| Actual power consumption | kw | 4 |
| Working Pressure | Mpa | 0.8 |
| Low pressure consuming | Ltr/min | 600 |
| Blowing pressure | Mpa | 3 |
| High pressure consuming | Ltr/min | 1800 |
| Measurement of Main Blower | mm | 1730*800*1850 |
| Measurement of elevator | mm | 880*520*1650 |
| Weight of Main Blower | kg | 1200 |

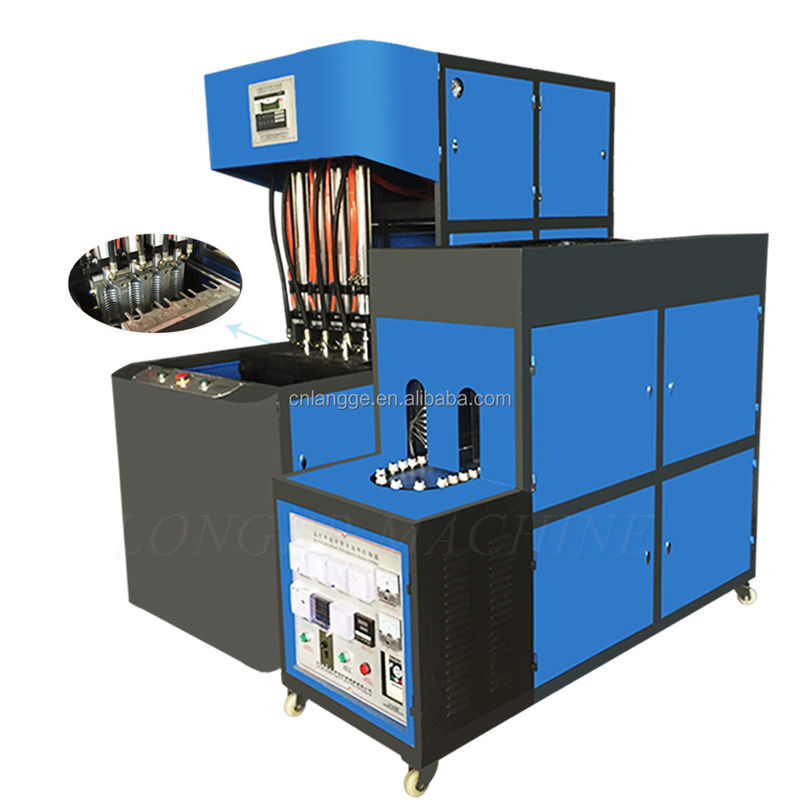

Under normal conditions ,the blow molding machine to abroad will be packaged in wooden case. In addition ,we will also pack the machine according to the requirements of specific customers. Subject to the measurement of main blower ,we will choose corresponding wooden case, Longer is a professional mould machinery company .we will try our best to satisfy the kinds of demand of customers.
